High Voltage Motor Insulation Materials: Materials, Applications and Selection Guide

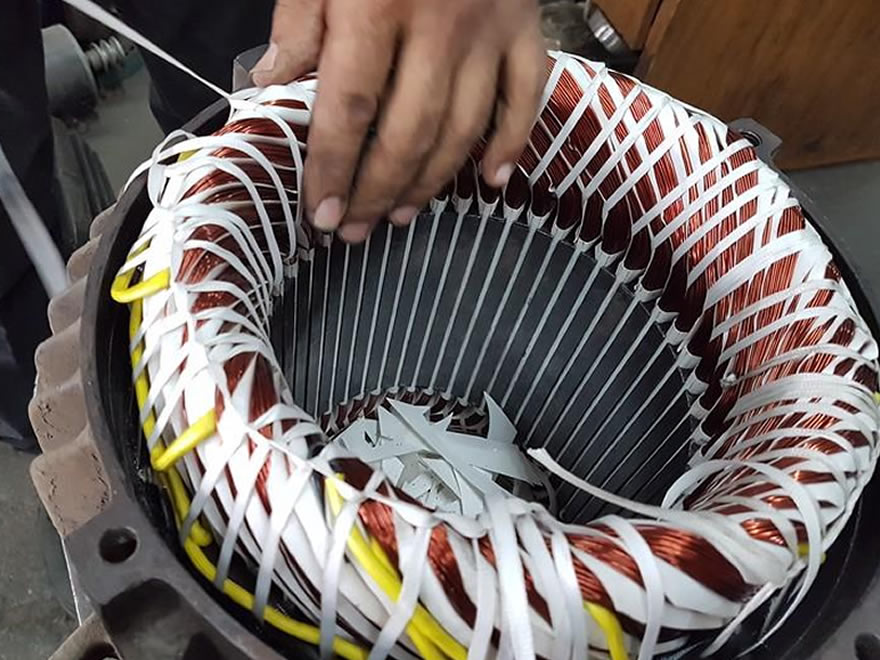

High voltage motor insulation materials are an essential part of the motor insulation system. They are commonly used in stator windings, slot insulation, turn-to-turn insulation, end-winding insulation, slot wedges, and various insulation structural components.

Depending on the motor voltage rating, thermal class, manufacturing process, and operating environment, different types of insulation materials may be selected. In many applications, several materials are combined to form a complete electrical insulation system.

What Insulation Materials Are Commonly Used in High Voltage Motors?

DMD Composite Insulation Paper

DMD is a widely used flexible composite insulation material, typically made by laminating polyester film with electrical insulation paper. It offers good electrical insulation, mechanical strength, flexibility, and thermal resistance.

In motor insulation systems, DMD can be used for slot insulation, interlayer insulation, winding insulation, and other auxiliary insulation applications.

For applications requiring flexibility, easy forming, and balanced electrical and mechanical properties, DMD is a commonly used insulation material.

NMN and NHN High-Temperature Insulation Materials

NMN and NHN are flexible composite insulation materials designed for motors and generators with higher thermal performance requirements.

NMN is typically composed of Nomex aramid paper, polyester film, and Nomex aramid paper. It combines the thermal resistance of aramid paper with the mechanical and dielectric properties of polyester film.

NHN is typically composed of Nomex aramid paper, polyimide film, and Nomex aramid paper. It offers higher thermal performance and can be used in motor insulation systems where higher temperature resistance is required.

The appropriate material should be selected according to the motor’s insulation class, operating temperature, electrical requirements, and manufacturing process.

Mica Materials for High Voltage Winding Main Insulation

For high voltage motors, stator winding main insulation is one of the most critical parts of the entire insulation system.

Mica offers excellent dielectric and thermal properties. Therefore, mica tape, glass-fiber-reinforced mica tape, and resin-based mica insulation systems are widely used as main insulation materials for high voltage motor stator windings.

In manufacturing processes such as VPI (Vacuum Pressure Impregnation), mica insulation materials can be combined with impregnating resin to form an integrated winding insulation system.

Therefore, the selection of high voltage motor insulation materials should not focus only on the properties of an individual material. Compatibility between the insulation material, resin, conductor, and other insulation layers must also be considered.

G11, G10 and GPO-3 Insulation Structural Materials

In addition to flexible insulation materials and winding main insulation, high voltage motors also require various rigid insulation structural components.

G11 / EPGC308 is a glass-fiber-reinforced epoxy laminate with good mechanical strength, electrical insulation properties, and thermal resistance. It can be machined according to customer drawings into slot wedges, insulation spacers, support components, barriers, and other insulation parts.

G10 is also a glass-fiber-reinforced epoxy laminate that can be used for various electrical insulation structural components. For applications requiring higher temperature performance, an appropriate material grade should be selected according to the actual operating conditions.

GPO-3 / UPGM203 is a glass-fiber-reinforced unsaturated polyester insulation material. It offers good electrical insulation, arc resistance, and mechanical strength, making it suitable for insulation supports, barriers, spacers, and other electrical structural components.

Common Insulation Materials Used in Different Parts of High Voltage Motors

Key High Voltage Motor Insulation Applications

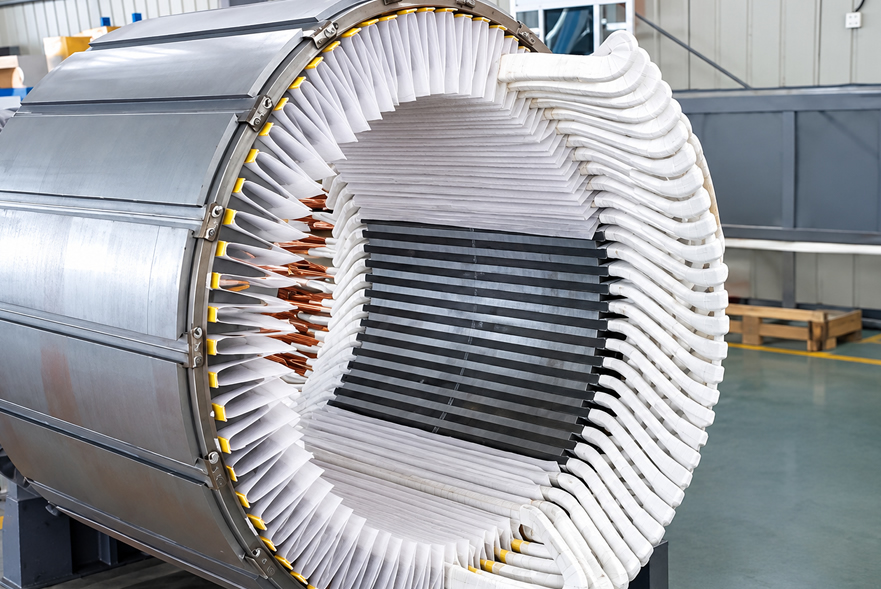

1. Stator Slot Insulation → DMD / NMN / NHN

After the windings are inserted into the stator slots, slot insulation is used to electrically separate the copper conductors from the stator core.

This is one of the typical applications of DMD, NMN, and NHN in electric motors.

2. Stator Winding Main Insulation → Mica

For high voltage motors, this is one of the most critical insulation applications.

High voltage windings generally require a robust electrical insulation system. Due to its good dielectric and thermal properties, mica-based insulation materials are widely used for the main insulation of high voltage windings.

3. Turn-to-Turn Insulation → PI / DMD / NMN / NHN

Turn-to-turn insulation helps prevent electrical breakdown between adjacent turns of the winding.

For high-temperature or high-performance applications, polyimide (PI) film and other high-performance insulation materials may be selected according to the motor design and operating conditions.

4. Slot Wedges → G10 / G11 / GPO-3

Slot wedges have two important functions: securing the windings inside the stator slots and providing electrical insulation.

Therefore, slot wedge materials need to provide an appropriate combination of electrical insulation, mechanical strength, dimensional stability, and thermal performance.

High Voltage Motor Insulation Materials Manufacturer Consultation

Xujue Electrical specializes in electrical insulation materials for motors, transformers, generators, and other electrical equipment.

For motor and high voltage motor insulation applications, Xujue Electrical provides a wide range of flexible and rigid insulation materials, including:

DMD, NMN, NHN, polyimide film, G10, G11 / EPGC308, GPO-3 / UPGM203, FR4, 3240, phenolic laminates, epoxy fiberglass tubes, electrical laminated wood, and other customized insulation components.

Based on the customer’s specific application, we can supply sheets, rolls, tubes, rods, and CNC-machined insulation parts. We can also assist with material selection according to product dimensions, thermal class, electrical requirements, mechanical requirements, and operating environment.

For customized insulation components, customers can provide the product name, dimensions, required quantity, application, temperature class, and electrical requirements. We can then recommend suitable materials and provide technical data, samples, and quotations accordingly.
