Fiberglass Pultruded Bar (Pultrusion Insulation Stay)
Fiberglass Pultruded bar （Fiberglass Pultruded Profiles）is manufactured by pulling fiberglass impregnated with special resin through a mould in the pultrusion process.
Leave us a message to get quotation and sample!
If you are attractive to our products, please send us a message and we will contact you as soon as we receive it.
Description of Fiberglass Pultruded Bar
Fiberglass Pultruded bar pultrusion insulation stay is manufactured by pulling fiberglass impregnated with special resin through a mould in the pultrusion process.
It has the advantages of excellent insulation, good heat and corrosion resistance, and high mechanical strength and so on.
Other Industry Names：Epoxy Dog Bone Profile，Dog Bone Bar, I Shape Profile,U Shape Profile,Pultruded Dog Bone Profile,Transformer Insulation Spacer,Insulating Support Bar , etc
Fiberglass Pultruded Bar Application
It is mainly used as an insulating structural component, such as the support rod of a dry-type transformer.
Fiberglass Pultruded Bar Advantage
Fiberglass Pultruded bar pultrusion insulation stay, produced by XUJUE ELECTRICAL using fiberglass as raw material, has the advantages of reliable quality and various shapes with strict manufacturing technology.
The mechanical and electrical properties of products are superior to the similar one of other companies.
Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric.

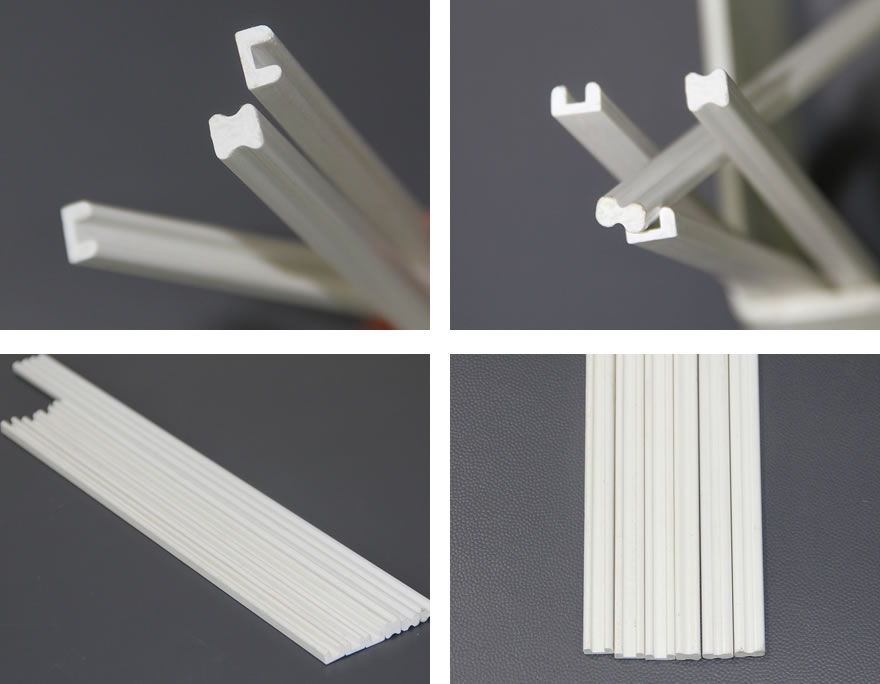

Fiberglass Pultruded bar pultrusion insulation stay produced by XUJUE ELECTRICAL includes straight I-bar, I-bar, flat bar, hexagonal rod, hollow T-bar, solid T-bar, U shaped bar, R shaped bar, round rod, right angle, etc with various shapes and types and can fully meet the customers’ diversified demands.
Insulation Stay Diagram of Fiberglass Pultruded Bar Pultrusion Insulation Stay
Fiberglass Pultruded Bar data sheet
| Name | Specification | ||||
| Straight I-Bar | 10*12*5 | 10*14*5 | 10*25*5 | 10*20*5 | 10*12*6 |
| I-Bar | 6*6 | 6*7 | 6*8 | 8*8 | 8*10 |
| 10*14 | 10*15 | 10*16 | 12*16 | 14*16 | |
| 14*18 | 16*20 | 16*18 | 14*20 | 12*20 | |
| Flat Bar | 5*22 | 14*16 | 12*14 | 12*30 | 12.5*30 |
| 10*40 | 12*40 | 12*40 | 10*10 | 5*10 | |
| Hollow T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*19 | 18*12*20 |
| 25*19*20 | |||||
| Solid T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*16 | 19*6*10 |
| 22*14*16 | 22*16*8 | 25*19*10 | 18*12*10 | 25*19*14 | |
| U-Bar | 10*8*2 | 6*10*4 | |||
| R-Bar | 10*17*7 | 19*19*7 | 6*8 | 8*28 | 10*30 |
| 8*8 | 10*10 | ||||
| Hexagonal Rod | 14*14 | ||||
| Round Rod | 4-6-8-12–20–24 | ||||
| Right Angle | 75*75*5 | 40*40*4.6 | 10*10 | 7*7 | 6*6 |
| ※Various shapes and specifications are not limited to this table. | |||||
