FR4 Epoxy Fiberglass Sheet
NEMA FR4/EPGC 202/HGW2372.1 Flame Retardant Epoxy Fiberglass laminated sheet
Color: Green/Water Green/White/Yellow/Black
Thickness: 0.5-50mm
Standard Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 mm(Support customize)
Heat Resistance : Class B (130° C)
Type:FR4 epoxy sheet / ESD FR4 sheet / Halogen-free FR4 sheet
Sample: Free sample for testing
Certificate:UL94-V0 / RoHS / REACH / MSDS / CEMT
Application:Insulation materials for electronic and electrical equipment
Leave us a message to get quotation and sample!
If you are attractive to our products, please send us a message and we will contact you as soon as we receive it.
Product Introduction
FR4 Epoxy Fiberglass Sheet (EPGC 202/NEMA FR4/HGW2372.1) is also called FR-4 flame retardant epoxy fiberglass sheet ,It is a laminated product made of electronic grade glass fiber cloth impregnated with epoxy resin and flame retardant and pressed under high temperature and high pressure.
FR4 Epoxy Fiberglass Sheet has excellent mechanical properties, dielectric properties, and thermal stability. It is suitable for insulating structural parts of electrical equipment, electronic equipment, and mechanical processing.
FR4 Sheet Type:FR4 epoxy sheet / ESD FR4 sheet / Halogen-free FR4 sheet. The main differences are:ESD FR4 is a controlled anti-static Sheet, while halogen-free FR4 is an environmentally friendly flame-retardant sheet that complies with regulatory requirements.

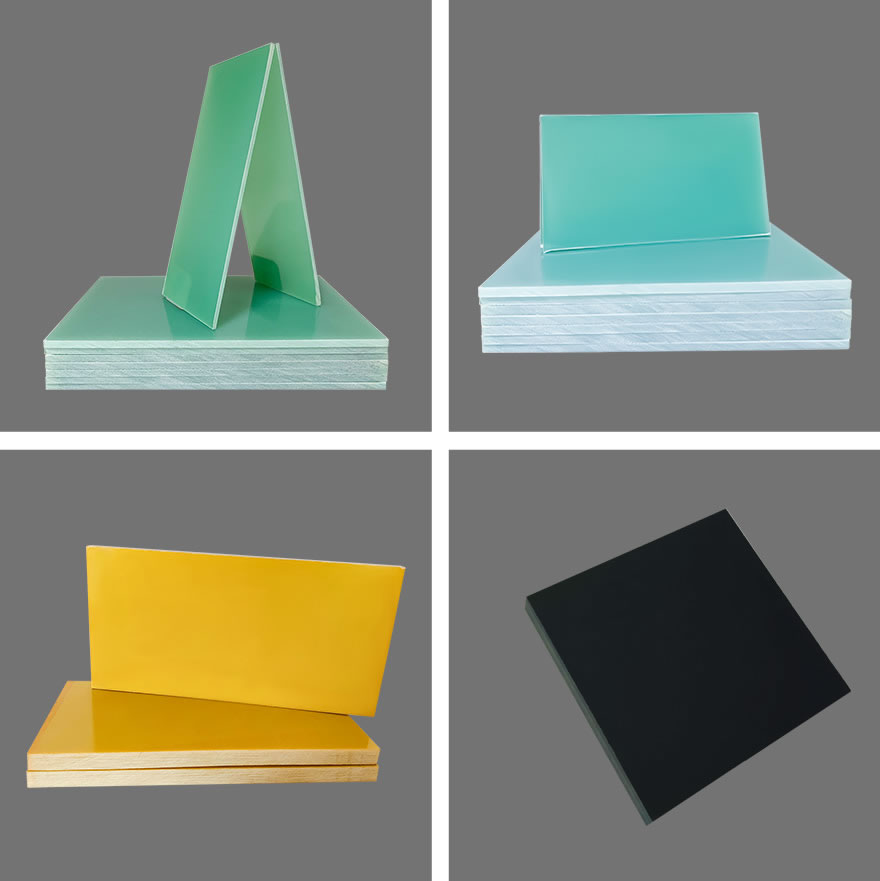

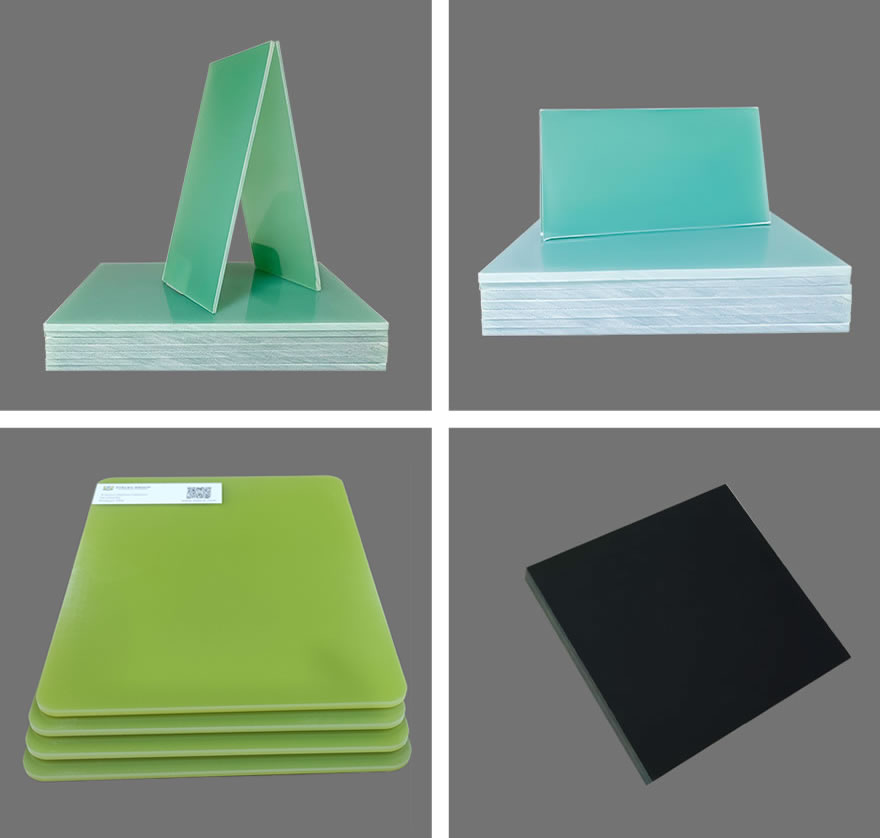

FR4 Epoxy Fiberglass Sheet Different Color Pictures
Product specifications (length, width, thickness, etc.) and uses can be customized on demand
FR4 epoxy fiberglass sheet (Get free samples and quotes)
FR4 Epoxy Fiberglass Sheet Application
It can be used as insulating structural parts with heat resistance for electrical equipments such as transformers, motors, circuit breakers, switchgear, AC contactors, explosion-proof electrical appliances, electric furnace, electric melting furnace, etc.
It can also be used for making structural support parts of switch and transformer, bus clamp plate, signal plate, partitions and lining plates of various switch gears, terminal plate, interphase insulation, bottom baffle, contact support parts, movable cover, slot wedge stator, fixed gasket, thin gasket, carbon brush, etc.
FR4 Epoxy Fiberglass Sheet Parameter：
| Product Name | NEMA GRADE FR-4/EPGC202 | ||
| SECTIONI-MISC CHARACTERISTICS | |||
| Density | g/cm³ | 1.95-2.10 | |
| Flammability | UL94 | VO | |
| Water absorption (5mm) | % | ≤0.15 | |
| Chemical family | Resin | Epoxy | |
| Reinforcement type | Glass fabrics | 7628 | |
| Thermal characteristics | °C | ≥130°C | |
| Colour | Green (Natural),Yellow | ||
| SECTIONII-MECHANICAL CHARACTERISTICS | |||
| Bending strength | MPa | ≥400 | |
| Tensile strength | MPa | ≥300 | |
| Compressive strength ⊥ | MPa | ≥350 | |
| Modulus of elasticity | MPa | ≥24000 | |
| Impact strength // | kJ/m² | ≥33 | |
| SECTIONⅢ-ELECTRICAL CHARACTERISTICS | |||
| Electrical strength ⊥ | kV/mm,thicknesss≤3mm | ≥10.2 | |
| Breakdown voltage// | kV | ≥35 | |
| Proof tracking index | PTI | ≥200 | |
| SECTION IV-HAZARDOUS INGREDIENTS | |||
| Hazardous components | No OSHA hazardous ingredients | ||
| SECTIONV-REACTIVITY DATA | |||
| Chemical stability | Stable under normal conditions | ||
| Conditions to avoid | Avoid longtime heating above 130℃ | ||
| Incompatible materials | Exposure to strong acids or bases will cause damage | ||
| Hazardous polymerizations | Will not occur | ||
| Storage and use effects | Conventional performance remains stable within 1 year. Long-term exposure to sunlight and high humidity will cause discoloration and performance degradation. | ||
| SECTION VI-PRECAUSTION | |||
| Over exposure effects | Dust from machining products can iritate the eyes,nose,throat and lungs. Prolonged inhalation of dust can cause lung disease. | ||
| Note:All information,recommendations and suggestions appearing herein concerning this product are average values as certained at room temperature by regular statistical analysis. It is provided purely for information and shall not be regarded as binding unless expressly agreed otherwise. | |||
| DIMENSIONAL TOLERANCE | Tolerance of length & width is less than 5 mm | ||
| Thickness(mm) | Tolerance(mm) | Thickness (mm) | Tolerance(mm) |
| 0.5-0.8 | ±0.05 | 6.0-8.0 | ±0.50 |
| 1.0-1.8 | ±0.15 | 10.0-15.0 | ±0.75 |
| 2.0-2.8 | ±0.20 | 16.0-20.0 | ±1.00 |
| 3.0-5.0 | ±0.30 | 21.0-50.0 | ±2.00 |
