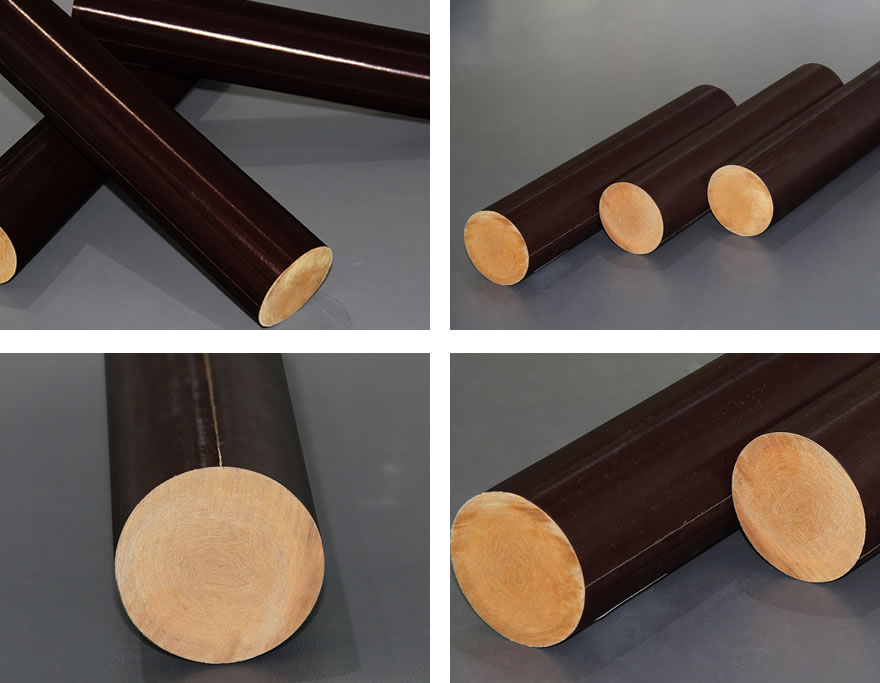

Diphenyl Ether Fiberglass Cloth Laminated Rod

Product Introduction

Diphenyl ether fiberglass cloth laminated rod is one of insulating rods with circular cross-section, created by fiberglass cloth impregnated with diphenyl ether resin under hot pressing of molding.It has higher mechanical strength and dielectric property, and strong mechanical strength and good dielectric property under dry and wet condition.

The insulation class is H class and the main color is dark brown.

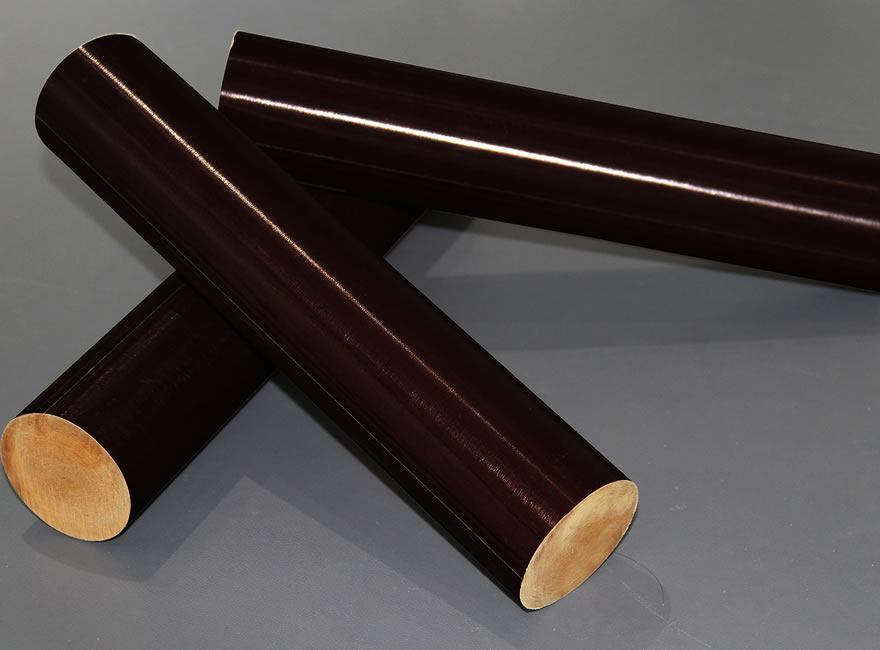

Diphenyl Ether Fiberglass Cloth Rod

Application

Diphenyl Ether Fiberglass Cloth Laminated Rod Apply to as insulating structural spares, screw processing parts in motors and electrical equipments.

Advantage

Diphenyl ether fiberglass cloth laminated rod, produced by Xujue Electrical using diphenyl ether as raw materials, can be mass-produced with advanced production equipment and automatic production line. This product has the advantages of reliable quality, smooth appearance, uniform color, neat cutting ends and small thickness tolerance with strict manufacturing technology. The mechanical and electrical properties of products are superior to the similar one of other companies. Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.

Diphenyl Ether Fiberglass Cloth Rod

Property Parameter of Diphenyl Ether Fiberglass Cloth Laminated Rod

Executive Standard: GB-T 5132.1-2009 IEC61212-1:2006

Number	Item	Unit	Value
1	Density	g/cm3	1.7-1.8
2	Flexural Strength at Perpendicular Lamination （Under Normal）	MPa	≥220
3	Axial Compressive Strength	MPa	≥175
4	Breakdown Voltage at Parallel Lamination （Transformer Oil at 90℃）	Kv	≥40
5	Insulation Resistance after Immersion	MΩ	≥1000
6	Dielectric Loss Factor（50Hz）	–	≤0.03
7	Water Absorption	Mg/cm2	≤5
8	Thermal Index	–	180

Welcome to visit our factory for guidance.

XUJUE ELECTRICAL is a professional manufacturer of high-quality electrical insulation materials, integrating the research and development, production and sales of electrical and electrical insulation materials. It has more than 65 years of manufacturing experience. The production capacity and market share of insulation materials are ranked top three in the industry, and special insulation materials are ranked first. Products are exported to Europe, America, Southeast Asia and other countries and regions.

If you need to know more about Phenolic Cotton Cloth Rod and other insulation materials product information and quotations, please contact us, we can mail you samples for your testing

FAQ

1.Where is your factory?
Our factory is in Xuchang city, Henan province, China.
2.Can I visit your factory?
Of course, welcome to our factory.
3.Can you send me samples to test?
Yes, we offer free samples to customers and they just need to pay the freight.
4.Do you have any certificates for your products?
Yes, we have UL certificate, SGS, ISO 9001: 2008 etc.
5.What ’s your payment terms?
Usually our payment terms is 30% paid by T / T in advance and the balance paid before shipment. This is negotiable.
6.What ’s your delivery time?
It depends on the product and order quantity. Usually the delivery time is within 15 working days after getting deposit.
7.What ’s your main product?
We supply all kinds of insulation materials used in electrical field and most of them used in transformers and motors.
