 How to choose the diamond size of Diamond Dotted Paper

Time: 07-03 2025    Auther: Ztelec group

What Is the Diamond Pattern Size in DDP? The “diamond pattern” refers to the heat-curable epoxy resin dots printed o...

What Is the Diamond Pattern Size in DDP?

The “diamond pattern” refers to the heat-curable epoxy resin dots printed on the surface of Diamond Dotted Paper in a diamond-shaped grid.
The diamond size typically refers to the side length or diagonal of a single diamond, such as 4mm, 6mm, 9mm, 12.5mm, or 20mm.

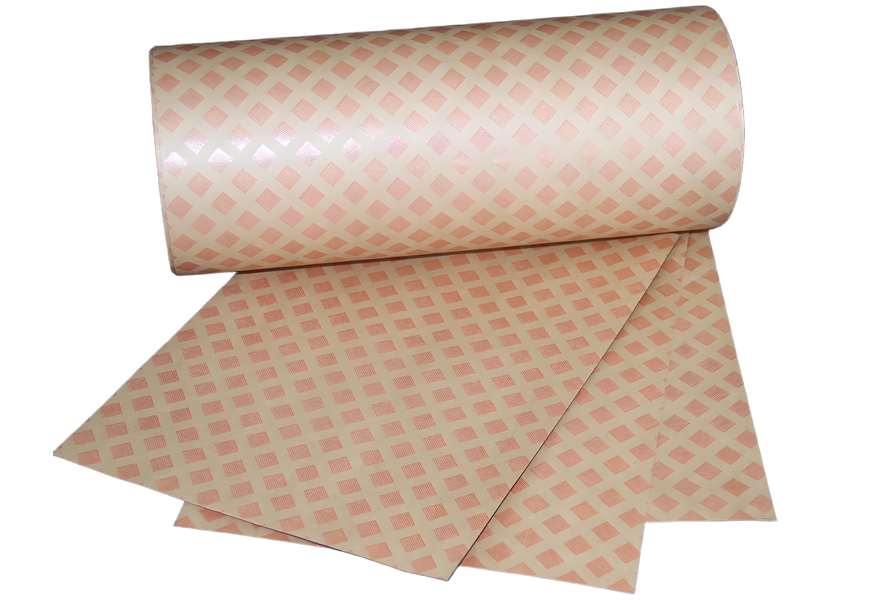

DDP-paper

Performance Comparison of Different Diamond Sizes

Diamond Size Dot Density Bonding Strength Air/Varnish Permeability Typical Applications
Small (4mm~6mm) High Strong Poor Small dry-type transformers, high bonding areas
Medium (9mm~12.5mm) Moderate Medium Fair General transformer insulation
Large (20mm and above) Low Low Excellent Large oil-immersed transformers with better oil flow and cooling needs

How to Choose the Diamond Size?

1. Based on Transformer Type:

Transformer Type Recommended Diamond Size
Dry-type transformer 9mm~12.5mm (medium)
Oil-immersed transformer ≥12.5mm (large)
Control transformer / low power coils 4mm~6mm (small)

2.Based on Performance Needs:

Application Focus Suggested Diamond Size Reason
Strong bonding strength Small (4~6mm) Dense dot distribution ensures solid structure
Better oil/air circulation Large (12.5~20mm) Sparse dots allow better oil/gas flow
General-purpose use Medium (9~12.5mm) Balanced performance, widely used

Common Diamond Size Examples

Diamond Size Application
4×4 mm Tight bonding for small coils
9×9 mm Standard dry-type transformer insulation
12.5×12.5 mm For oil-immersed transformers—balanced bonding and ventilation
20×20 mm For large oil-immersed units—enhanced oil channeling and cooling

Summary of Selection Recommendations:

Dry-type transformer → 9mm or 12.5mm

Oil-immersed transformer → 12.5mm or larger

Compact space / high structural strength → 4mm or 6mm

ddp insulation paper

To sum up:

If the structural requirements are high, choose small diamonds; if the thermal management and oil flow requirements are high, choose large diamonds; for general use, choose medium (such as 9mm) specifications.

XUJUE ELECTRICAL is a professional manufacturer of electrical insulation materials with 65 years of experience in insulation material production. If you tell me the specific transformer type, voltage level and use location, we can recommend more accurate specifications.
