Phenolic Cotton Cloth Laminated Rods-Technical Specifications&Classification

Phenolic Cotton Cloth Laminated Rods Introduction,International & Mainstream Standards,Primary Applications.

1. Phenolic Cotton Cloth Laminated Rods Introduction

Phenolic Cotton Cloth Laminated Rod (cloth-based laminated rod) is a rigid, round insulating laminated rod. It is manufactured by impregnating multiple layers of cotton fabrics (as the reinforcement material) with phenolic resin (as the binder), followed by rolling under heat and hot-press curing in a mold to form a dense, solid structure.Its thermal resistance rating is typically Class E (120°C). It is characterized by exceptionally high mechanical strength, excellent impact resistance, and outstanding machinability.

2. International & Mainstream Standards

The classification and technical specifications for phenolic cotton cloth rods and laminated products primarily comply with the following three major global standard systems:

3. Primary Applications

Leveraging its composite properties of high mechanical strength + wear resistance + electrical insulation,
phenolic cotton cloth rods are widely utilized in the following fields:

Power Transmission & Distribution Equipment (Transformers & Switchgears):
Because it can operate long-term in transformer oil without degrading, it is frequently machined into insulating pull rods, support rods, fastening dowels, barrier bolts, and arc-extinguishing drive linkages in high-voltage switch cabinets.

Motors & Generators Manufacturing:
Used to fabricate armature components, motor end rings, slot wedges, and other non-conductive structural fasteners that must withstand severe vibration and centrifugal forces.

Mechanical & Wear-Resistant Drive Components:
The cotton fibers provide excellent toughness, making these rods ideal for lathing and milling into wear-resistant bushings, silent gears, bearings, sliders, and pulleys.They perform exceptionally well in high-load or non-lubricated mechanical friction environments.

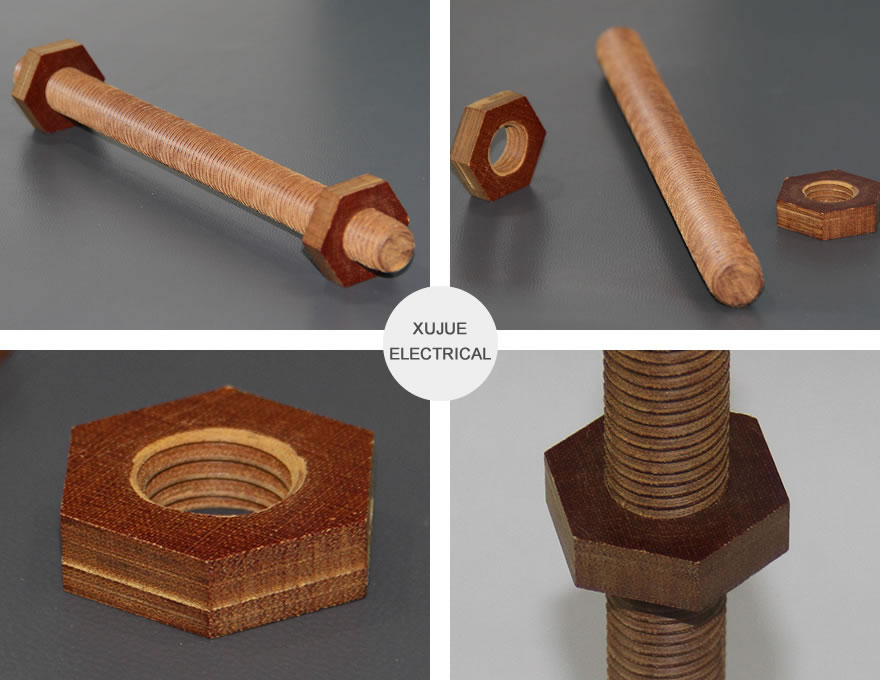

Phenolic Cotton Cloth Processing Parts

Consult with phenolic cotton rod manufacturers

Xujue Electrical is a professional manufacturer of electrical insulation materials, with dedicated production lines for phenolic cotton cloth rods and an in-house machining workshop. Based on our customers’ industry requirements and specific applications, we provide stable and reliable insulation material solutions.

If you are looking for a reliable phenolic cotton cloth rod manufacturer, feel free to contact us online for samples and a quotation.
