G10 Insulation Material for Power Equipment: Improving Reliability, Safety and Performance

As power equipment continues evolving toward higher voltages, greater efficiency, and longer service life, insulation...

As power equipment continues evolving toward higher voltages, greater efficiency, and longer service life, insulation materials have become increasingly critical to equipment reliability. Among various electrical insulation materials, G10 insulation material has become widely used in transformers, motors, generators, switchgear, and renewable energy systems due to its excellent electrical insulation properties and mechanical strength.

This article explores what G10 insulation material is, its advantages, and why it plays an important role in modern power equipment.

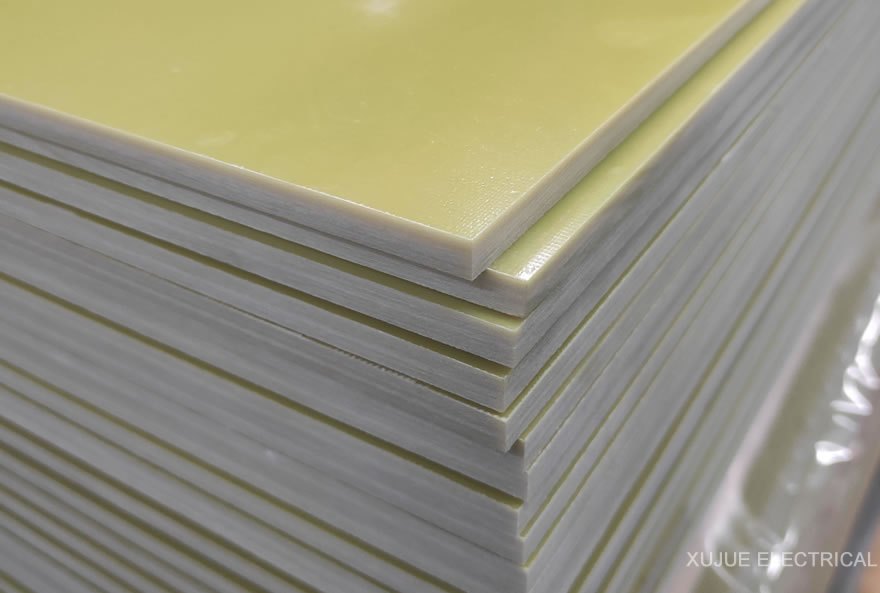

What is G10 Insulation Material?

G10 insulation material(G10 epoxy fiberglass sheet) is a high-pressure fiberglass laminate made from woven glass cloth and epoxy resin. It combines excellent electrical insulation with strong mechanical performance, making it suitable for demanding industrial environments.

Compared with conventional insulation materials, G10 offers:

High dielectric strength

Excellent mechanical strength

Good dimensional stability

High temperature resistance

Easy machining and fabrication

Long-term reliability under electrical stress

Because of these characteristics, G10 sheet material has become one of the most widely used electrical insulation materials in power applications.

G10 Insulation Material Applications in Power Equipment

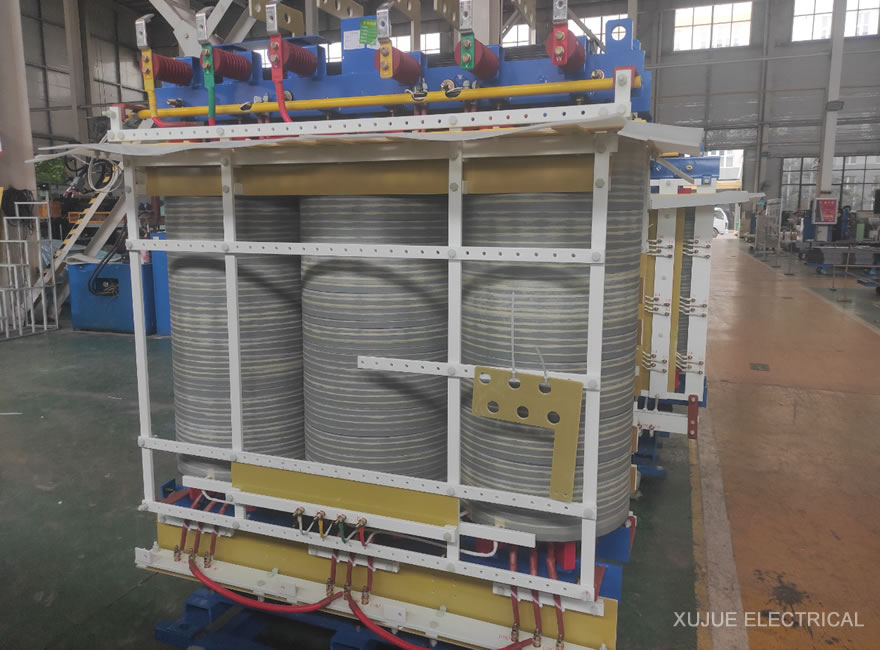

G10 for Transformers

G10 is commonly used inside transformers as:

Insulation support structures

Spacer blocks

Clamping components

Structural insulation parts

Its high mechanical strength helps transformers withstand short-circuit forces while maintaining insulation performance.

G10 for Motors and Generators

Motor and generator manufacturers frequently use G10 for:

Slot wedges

Insulation spacers

Coil support structures

Mechanical reinforcement components

G10 helps reduce vibration, improve winding stability, and extend equipment life.

G10 for Switchgear and High Voltage Equipment

In high-voltage systems, G10 is often used for:

Busbar supports

Insulation barriers

Structural supports

Arc-resistant insulation components

These applications require both electrical insulation and mechanical reliability, where G10 performs particularly well.

G10 for Renewable Energy Systems

As renewable energy markets expand, G10 is increasingly used in:

Wind power equipment

Energy storage systems

Charging infrastructure

Power electronics equipment

Its lightweight structure and excellent electrical performance make it suitable for modern energy systems.

Advantages of Using G10 Electrical Insulation Material

Excellent Electrical Insulation Performance

G10 provides stable dielectric properties and high insulation resistance, helping reduce electrical failures.

High Mechanical Strength

Power equipment often experiences vibration, electromagnetic forces, and mechanical stress. G10 maintains structural integrity under demanding conditions.

Thermal Stability

G10 performs reliably under elevated temperatures, supporting long-term equipment operation.

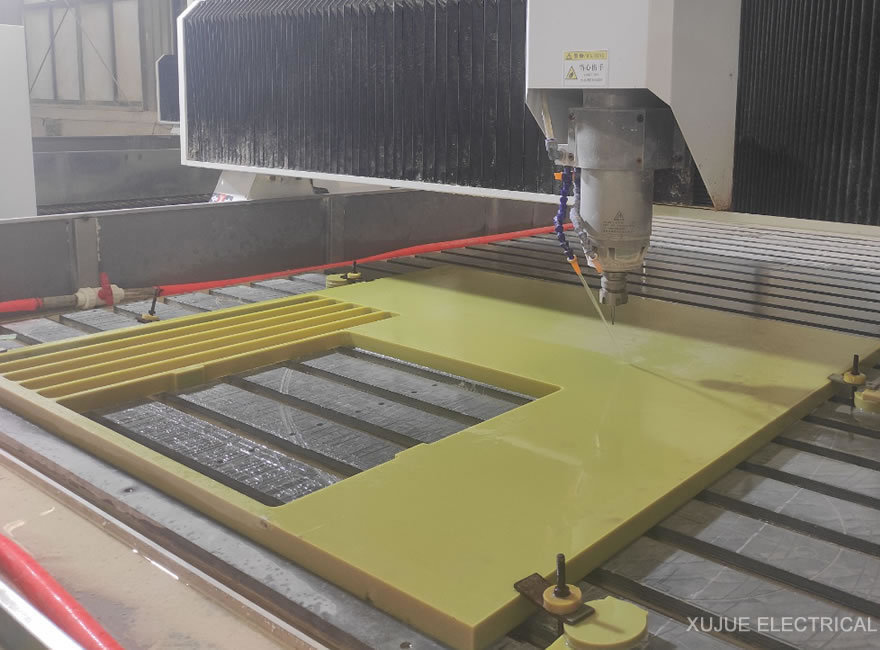

Easy Machining for Custom Components

G10 sheets can be CNC machined into customized insulation parts, allowing flexible designs for different equipment structures.

Why Demand for G10 Insulation Material Is Growing

Several market trends are increasing demand for G10 electrical insulation materials:

Expansion of renewable energy infrastructure

Grid modernization projects

Higher power density electrical equipment

Increased demand for reliable transformer insulation materials

Growth of electric power transmission systems

As power equipment becomes more advanced, manufacturers require insulation materials capable of delivering both electrical performance and structural reliability.

Conclusion

G10 insulation material plays a crucial role in modern power equipment by providing electrical insulation, mechanical support, and long-term operational reliability.

From transformers and generators to switchgear and renewable energy systems, G10 continues to become a preferred insulation material for manufacturers seeking higher performance and improved equipment lifespan.

As global demand for advanced electrical systems increases, G10 insulation material is expected to remain an essential component in future power equipment development.
