G10 Epoxy Fiberglass Laminate in Transformers: Insulation Barrier Applications and Benefits

G10 epoxy fiberglass laminate is widely used in transformer insulation structural components, especially insulation barriers, due to its excellent electrical insulation properti...

The Role of G10 Epoxy Fiberglass Laminate as an Insulation Barrier in Transformers

In modern power systems, transformers are critical equipment for electrical energy conversion and transmission, and their operational reliability directly affects the safety and stability of the entire power grid. Inside transformers, the insulation system is a key component that ensures long-term safe operation. In addition to traditional insulation materials such as insulating paper and transformer oil, high-performance composite insulation materials are becoming increasingly important in transformer manufacturing.

Among these materials, G10 epoxy fiberglass laminate is widely used in transformer insulation structural components, especially insulation barriers, due to its excellent electrical insulation properties, high mechanical strength, and outstanding dimensional stability.

As a glass fiber reinforced epoxy laminate material, G10 epoxy fiberglass laminate not only meets the insulation requirements of transformers operating under complex conditions but also provides reliable structural support, improving the overall service life and operational reliability of electrical equipment.

G10 Epoxy Fiberglass Laminate: An Important Material in Transformer Insulation Systems

G10 epoxy fiberglass laminate is a composite insulation material manufactured by using alkali-free glass fiber cloth as reinforcement and epoxy resin as the matrix, followed by high-temperature and high-pressure lamination and curing processes.

Compared with traditional insulation materials, G10 epoxy fiberglass laminate provides more stable overall performance. During transformer operation, internal insulation structures are exposed to multiple stresses, including electric fields, thermal stress, and mechanical vibration. Therefore, insulation materials must not only have excellent electrical properties but also possess sufficient mechanical strength and environmental resistance.

Due to these advantages, G10 epoxy fiberglass laminate has become a commonly used insulation structural material in oil-immersed transformers, dry-type transformers, reactors, and other power equipment.

Key Functions of G10 Insulation Barriers in Transformers

Inside transformers, high-voltage windings, low-voltage windings, iron cores, and metal structural components operate at different electrical potentials. Without reliable insulation barriers, problems such as partial discharge, electric field concentration, and insulation breakdown may occur during operation.

As an insulation barrier installed between components with different voltage potentials, G10 epoxy fiberglass laminate effectively increases electrical clearance and creepage distance, improves electric field distribution, and reduces the risk of insulation failure.

Especially in high-voltage transformers, winding ends and lead areas usually experience high electric field intensity. Through proper design of G10 insulation barriers, the local electric field environment can be effectively improved, enhancing the safety margin of the entire insulation system.

Providing Mechanical Support and Improving Transformer Short-Circuit Withstand Capability

During long-term operation, transformers are subjected not only to electrical stress but also to mechanical stress. For example, during short-circuit faults, windings experience significant electromagnetic forces. If the internal support structure is insufficient, winding deformation may occur, affecting equipment safety.

G10 epoxy fiberglass laminate has excellent bending strength and compression resistance, making it suitable for use as winding support plates, end insulation boards, and coil spacer plates.

Compared with conventional insulation paperboard, G10 epoxy fiberglass laminate offers better dimensional stability and is less likely to deform under long-term temperature rise and mechanical pressure. This helps maintain stable insulation distances inside transformers and improves short-circuit resistance.

Excellent Thermal Performance Ensures Long-Term Reliability

During transformer operation, windings continuously generate heat, and the internal temperature increases with load changes. Therefore, insulation materials must have excellent thermal stability.

G10 epoxy fiberglass laminate can maintain stable mechanical and electrical properties under elevated temperature conditions and is resistant to softening and deformation.

For standard temperature applications, G10 materials can meet the requirements of most transformer insulation structures. For higher-temperature environments, materials with higher thermal ratings, such as G11 epoxy fiberglass laminate, can be selected according to design requirements.

This excellent thermal performance enables G10 epoxy fiberglass laminate to meet the requirements of long-term continuous transformer operation.

Low Moisture Absorption Improves Insulation Service Life

Moisture is one of the important factors affecting transformer insulation performance. When insulation materials absorb moisture, insulation resistance decreases, dielectric losses increase, and overall breakdown strength may be reduced.

G10 epoxy fiberglass laminate features low water absorption and excellent environmental resistance, allowing it to maintain stable insulation performance during long-term operation inside oil-immersed transformers.

At the same time, its excellent oil resistance enables reliable operation in transformer oil environments, reducing material aging and extending the service life of the insulation system.

G10 Epoxy Fiberglass Laminate Promotes the Upgrade of Transformer Insulation Structures

With the development of the power industry toward higher voltage levels, larger capacities, and smarter systems, transformer manufacturers are demanding higher-performance insulation materials.

Although traditional insulation materials offer cost advantages, they have certain limitations in applications requiring high mechanical strength, high dimensional accuracy, and resistance to complex operating environments. G10 epoxy fiberglass laminate achieves a balanced combination of electrical performance, mechanical properties, and machinability through its glass fiber reinforced structure.

Currently, G10 epoxy fiberglass laminate is widely used in:

• Power transformer insulation barriers;
• High-voltage and low-voltage winding isolation structures;
• Core insulation support components;

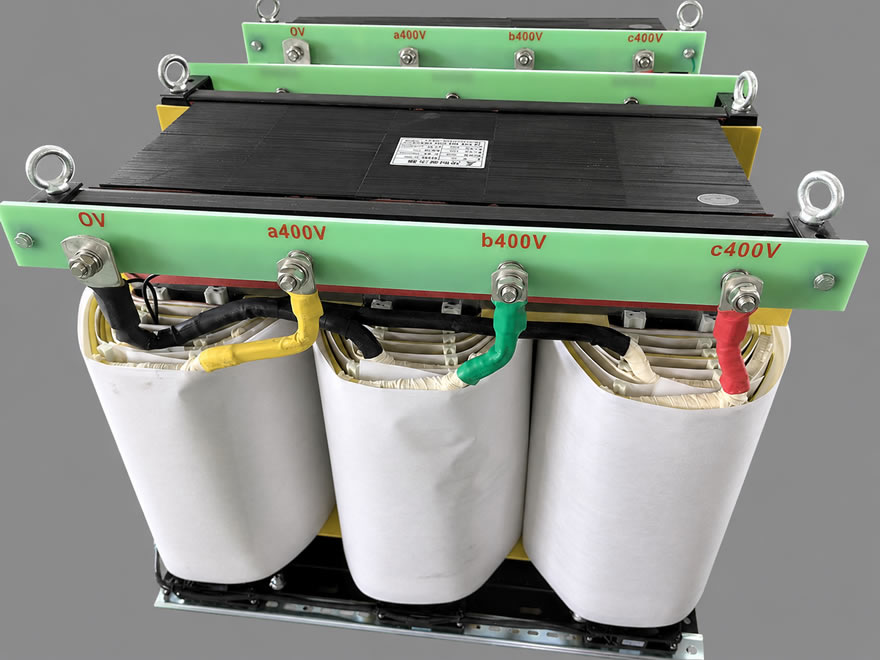

• Lead insulation support brackets;
• End insulation components.

Its application not only improves the reliability of transformer internal structures but also provides important support for the long-term stable operation of power equipment.
