FR4 Insulation Sheet – Essential Material for the Electronics & Electrical Industry

In the fields of electronic component manufacturing, electrical equipment insulation, and new energy vehicle battery ...

In the fields of electronic component manufacturing, electrical equipment insulation, and new energy vehicle battery packaging, FR4 insulation sheets have become indispensable basic materials due to their excellent electrical insulation, high-temperature resistance, and mechanical strength. However, with so many manufacturers on the market, how can customers evaluate their technical capabilities and product reliability? In this article, XUJUE ELECTRICAL will analyze how to choose an FR4 insulation sheet supplier with core competitiveness from the perspectives of material properties, manufacturing processes, and application scenarios.

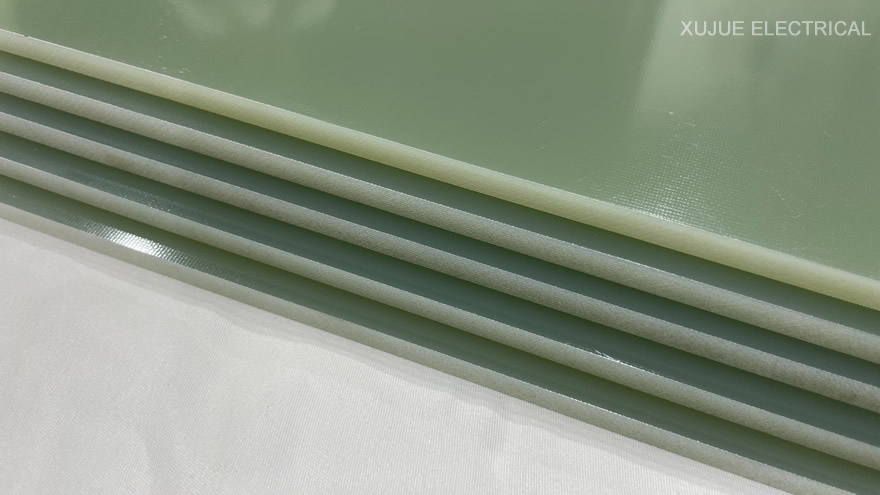

FR4 epoxy fiberglass laminated sheet

1. Core Properties of FR4 Insulation Sheets: Why Are They an Industry “Essential”?

FR4 insulation sheets are made of fiberglass cloth reinforced with epoxy resin and laminated under high temperature and pressure. Their performance directly affects the stability and safety of electronic equipment. Key advantages include:

Excellent Electrical Insulation

Under both dry and humid conditions, FR4 insulation sheets can achieve a volume resistivity of over 10¹⁴ Ω·cm, effectively preventing current leakage and reducing the risk of short circuits.

Wide Temperature Resistance Range

FR4 materials can operate continuously in environments ranging from -55°C to 155°C, with short-term heat resistance exceeding 200°C, making them suitable for extreme temperature applications.

High Mechanical Strength

With a flexural strength exceeding 340 MPa and superior impact resistance compared to ordinary plastics, FR4 sheets are ideal for supporting and fixing precision components.

2. Expanding Application Scenarios: The “Cross-Industry Value” of FR4 Insulation Sheets

With continuous technological advancement, the application scope of FR4 insulation sheets is expanding rapidly.

In the new energy vehicle industry, FR4 sheets are widely used as insulation separators in battery packs, where they must pass needle flame and thermal shock tests.
In 5G communication base stations, low-loss FR4 laminates help reduce signal attenuation and improve transmission efficiency.
In the aerospace sector, lightweight and radiation-resistant FR4 materials are gradually replacing traditional metal components.

These advanced applications place higher demands on manufacturers’ technical adaptation capabilities, product consistency, and customized processing expertise.

3.FR4 Sheets Manufacturer selection

XUJUE ElECTRICAL is a professional manufacturer of high-quality electrical insulation materials with more than 65 years of manufacturing experience. The products have passed UL,RoHS,SGS,MSDS,CEMT testing and certification.

If you are looking for FR4 epoxy sheet, please contact Xujue Electrical and provide the product specifications, thickness and purpose you need, you can get detailed product information and quotation, and also send samples free of charge
