FR4 for Dry Type Transformer Insulation

With the rapid growth of renewable energy, smart grids, and industrial automation, dry type transformers are evolving toward higher voltage levels, improved thermal performance, and more compact designs. As a critical insulation material, FR4 epoxy glass fiber laminate is playing an increasingly important role in enhancing the safety, reliability, and service life of transformer systems.

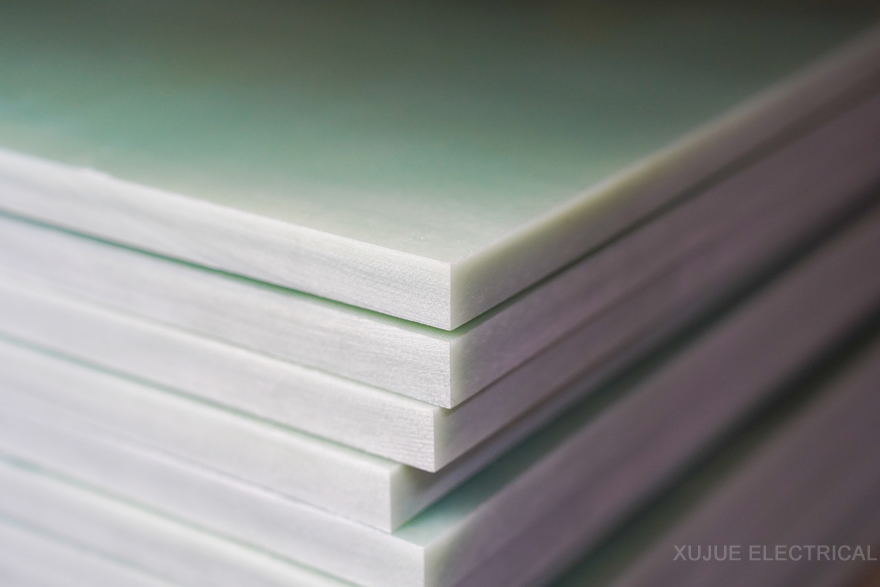

FR4 epoxy fiber glass laminated sheet

Industry Trend: Higher Requirements for Transformer Insulation Materials

In recent years, dry type transformers have been widely deployed in applications such as data centers, solar power plants, wind energy systems, and urban power distribution networks. Compared with oil-immersed transformers, they offer key advantages including environmental safety, fire resistance, and low maintenance.

However, these benefits also bring stricter requirements for insulation materials:
Higher thermal class (Class F / Class H)
Excellent dielectric strength and long-term stability
Superior mechanical strength to withstand short-circuit forces
Flame retardancy compliant with UL94 V-0 standards
Against this backdrop, FR4 has emerged as a preferred material for modern transformer insulation systems.

Key Advantages of FR4 in Dry Type Transformer Insulation

1. Electrical Insulation Performance

FR4 offers stable dielectric properties and high breakdown voltage, making it suitable for medium- and high-voltage applications such as 11kV and 33kV dry type transformers. It ensures reliable insulation between windings and phase barriers.

2. High Mechanical Strength

During operation, transformers are subjected to strong electromagnetic forces, especially under short-circuit conditions. FR4 provides excellent compressive and flexural strength, making it ideal for manufacturing:

Insulation support blocks
Spacers
End support structures

These components significantly enhance the mechanical stability of transformer assemblies.

3. Reliable Thermal Resistance

FR4 typically meets Class B to Class F thermal ratings (130°C–155°C), maintaining stable performance under elevated temperatures. It is especially suitable for cast resin dry type transformers operating in demanding environments.

4. Excellent Flame Retardancy

FR4 complies with UL94 V-0 flame retardant standards, reducing fire risks in electrical equipment and meeting stringent safety requirements in modern power systems.

5. Superior Machinability for Custom Components (Key Advantage)

FR4 is highly compatible with CNC machining, enabling precise fabrication of complex insulation components based on customer drawings:

Insulation barriers
Terminal boards
Phase separators
This flexibility is crucial for transformer manufacturers requiring customized insulation solutions.

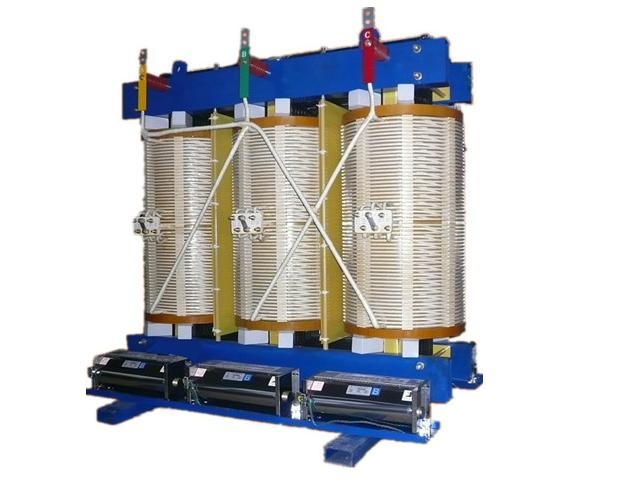

Typical Applications in Dry Type Transformers

FR4 is widely used in the following key components:

Winding insulation barriers
Phase separation structures
Coil support and fixing parts
End insulation components
Terminal insulation boards

These parts directly impact transformer safety, electrical performance, and operational lifespan.

FR4 vs Traditional Insulation Materials

Overall, FR4 stands out in integrating structural strength and electrical insulation, particularly in dry type transformer applications.

Future Development Trends

As demand increases for high-voltage dry type transformers (such as 35kV and above) and renewable energy systems, FR4 materials are continuously evolving:
Higher thermal classes approaching Class H
Lower dielectric loss
Halogen-free and environmentally friendly formulations
Integration with automated CNC manufacturing
In addition, hybrid solutions combining FR4 with materials such as G11 and advanced prepregs are expected to drive further innovation.

Conclusion

As dry type transformers continue to advance toward higher reliability and safety standards, FR4 epoxy glass fiber laminate is becoming a key insulation material in the industry. Its outstanding electrical, mechanical, and thermal properties—combined with excellent machinability—make it an ideal choice for modern transformer insulation systems.
