Comprehensive Guide to FR-4 Epoxy Sheets: Applications and Selection in the Electronics Industry

With the rapid evolution of the electronics industry and the continuous expansion of application scenarios, advancements in material science have become a key driving force behind technological innovation. As one of the most widely used materials for printed circuit boards (PCBs) and electrical insulation, FR-4 epoxy fiberglass sheet has gained widespread adoption thanks to its excellent combination of flame resistance, mechanical strength, and electrical insulation. Today, its applications extend far beyond consumer electronics into emerging industries such as electric vehicles (EVs), AI servers, renewable energy, and industrial automation.

This article provides a comprehensive overview of FR-4 epoxy sheet applications and offers practical guidance for selecting the right material for different industrial requirements.

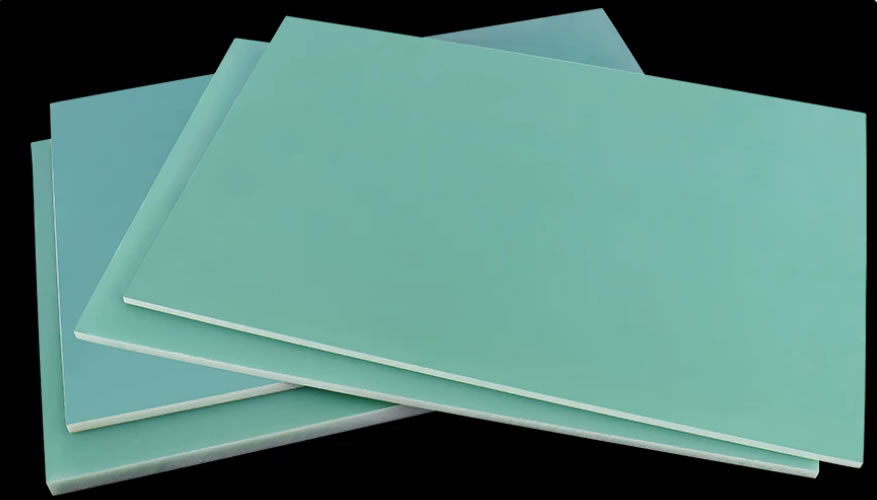

What Is FR-4 Epoxy Sheet?

Strictly speaking, FR-4 is not the name of a specific material but a material grade defined by the National Electrical Manufacturers Association (NEMA). The abbreviation “FR” stands for Flame Retardant, indicating that the material meets the UL94 V-0 flammability standard, meaning it is self-extinguishing within the specified time after the flame source is removed.

FR-4 epoxy sheet is typically manufactured by impregnating electrical-grade E-glass fiberglass cloth with epoxy resin, followed by high-temperature and high-pressure lamination. This composite structure provides excellent mechanical strength, stable electrical insulation, moisture resistance, and reliable dimensional stability, making it an ideal engineering material for electrical and electronic applications.

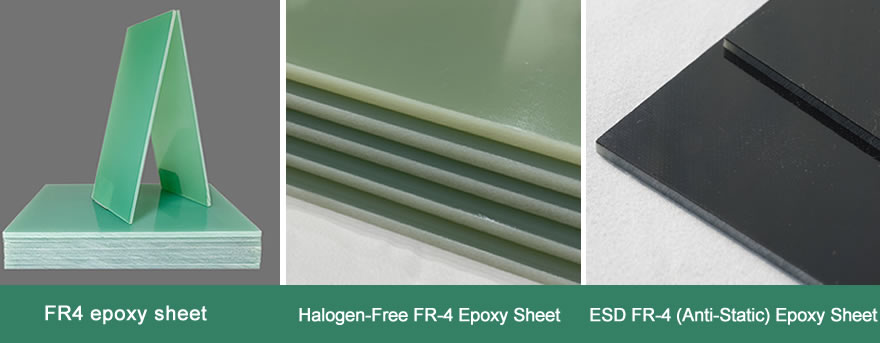

Types of FR-4 Epoxy Sheets

FR-4 epoxy sheets are generally available in the following product categories:

Standard FR-4 Epoxy Sheet（Epoxy resin+electronic grade fiberglass cloth)

Halogen-Free FR-4 Epoxy Sheet

ESD FR-4 (Anti-Static) Epoxy Sheet

All three types comply with the UL94 V-0 flame-retardant standard. Compared with standard FR-4, halogen-free and ESD FR-4 incorporate additional manufacturing processes and functional properties to meet the specific requirements of different industries and applications.

Applications of FR-4 Epoxy Sheets: From PCB Substrates to EV Battery Insulation

FR-4 has become an indispensable material throughout the electronics manufacturing supply chain.

1. PCB Substrates – The Largest Application Market

FR-4 is the world’s most widely used substrate material for printed circuit boards (PCBs). It is extensively used in:

• Computer motherboards
• Smartphones
• Televisions
• Consumer electronics
• Industrial control equipment

Different performance grades serve different markets:

• High-Tg FR-4 is preferred for multilayer PCBs, automotive electronics, telecommunications equipment, and other high-reliability applications.
• Standard FR-4 remains the most cost-effective choice for general consumer electronics.

2. FPC Stiffeners – Reinforcing Flexible Circuit Boards

In flexible printed circuit boards (FPCs), FR-4 is commonly used as a stiffener around connectors, soldering areas, and component mounting sections.

Its smooth surface finish, excellent flatness, and precise thickness tolerance significantly improve local rigidity, making assembly, insertion, and soldering easier while enhancing the overall reliability of flexible circuits.

3. Test Fixtures and Electrical Insulation Components

Thanks to its excellent machinability and dimensional stability, FR-4 can be CNC machined into a wide variety of industrial components, including:

• PCB testing fixtures
• Drilling backup boards
• Electrical insulation barriers
• Insulating spacers
• Washers
• Switch components
• Motor insulation parts
• Transformer insulation components

Even in humid environments or transformer oil, FR-4 maintains stable dielectric performance and excellent insulation reliability.

4. A Critical Safety Barrier for Electric Vehicle Battery Packs

As the electric vehicle industry continues to grow rapidly, battery safety has become a major engineering focus.

FR-4 epoxy sheet is widely used in EV battery packs because of its:

• UL94 V-0 flame-retardant rating, allowing self-extinguishing within approximately 10 seconds after flame removal
• High dielectric strength
• Excellent thermal stability
• Reliable insulation performance under elevated temperatures

These characteristics make FR-4 an ideal material for battery insulation barriers, structural insulation parts, and electrical safety protection.

Choosing the Right FR-4 Epoxy Sheet Manufacturer

If you are sourcing FR-4 epoxy sheets, selecting a reliable manufacturer is essential to ensure consistent quality, stable supply, and dependable after-sales support.

Xujue Electrical is a professional manufacturer specializing in electrical insulation materials with over 65 years of industry experience serving the transformer, electric motor, electronics, telecommunications, and new energy industries.

The company operates its own independent testing laboratory and provides one-stop services including:

• R&D of electrical insulation materials
• Material manufacturing
• Precision CNC machining
• Custom insulation component fabrication

Customers simply need to provide the required dimensions, drawings, thermal class, and application requirements. Leveraging decades of industry expertise, Xujue Electrical delivers complete, customized insulation material solutions tailored to each project.
