ESD FR4 sheet vs Standard FR4 Epoxy Sheet

Time: 02-26 2026 Auther: Xujue Electrical

ESD FR4 epoxy sheet is a "functional upgrade" of the standard FR4 epoxy sheet. Through special process modifications,...

ESD FR4 epoxy sheet is a “functional upgrade” of the standard FR4 epoxy sheet. Through special process modifications, it retains all the excellent properties of standard FR4 (such as high mechanical strength, electrical insulation, and heat resistance) while adding the core function of Static Dissipative (ESD) capability.

ESD FR4 Epoxy Sheet

To help you understand more clearly, the key differences are summarized in the table below:

Comparison Aspect	Standard FR4 Epoxy Sheet	ESD FR4 Epoxy Sheet
Core Function	Electrical insulation, mechanical support.	Electrical insulation, mechanical support + Static Protection.
Electrical Property	Surface Resistivity > 10¹² Ω (typically >10¹⁴ Ω). It’s an excellent insulator, prone to accumulating static charge.	Surface Resistivity 10⁶ ~ 10¹¹ Ω, falling within the semi-conductive range. It can controllably and slowly dissipate static electricity, rather than discharging instantly or accumulating continuously.
Manufacturing Process	Standard epoxy resin compounded with fiberglass cloth under heat and pressure.	Based on the standard process, modified by adding antistatic agents, carbon nanotubes, or other conductive fillers for bulk modification. This gives the entire material or its surface inherent static dissipative properties.
Key Advantages	Lower cost, excellent insulation performance.	Stable and permanent anti-static properties (because it’s bulk modified, it won’t wear off or fail due to friction or cleaning like surface coatings). Retains all the heat resistance, machinability, and high strength of standard FR4.
Typical Applications	General electrical insulation parts where static sensitivity is not a concern, such as motor and appliance spacers, partitions, mechanical support components, etc.	Semiconductor manufacturing/testing fixtures, PCB carriers/trays, SMT pick-and-place machine parts, packaging/totes for sensitive electronic components, hard disk drive components, parts inside medical electronic equipment, and other scenarios sensitive to static discharge.
Cost	Lower	Slightly higher than standard FR4

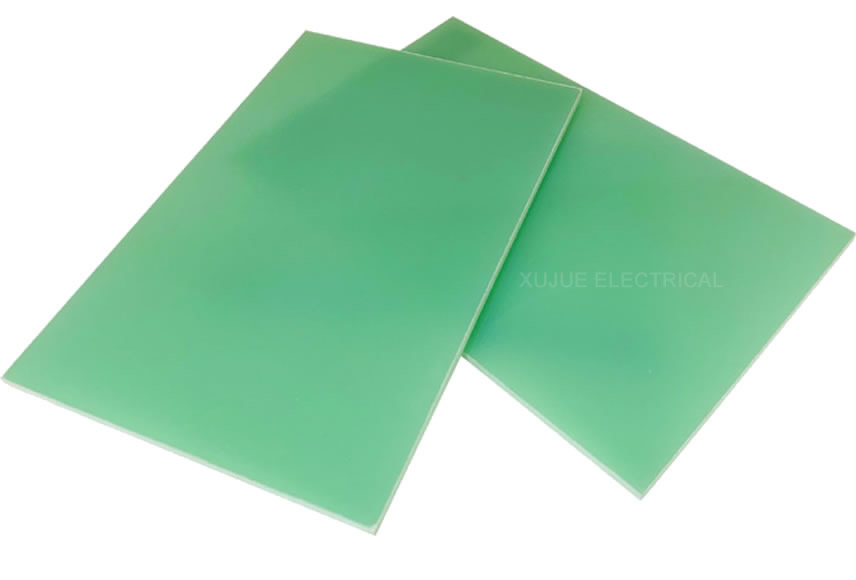

Standard FR4 Epoxy Sheet

How to Choose?

If your application involves general electrical insulation or structural support in an environment without precision electronic components, then Standard FR4 is the most cost-effective choice.

If your work involves semiconductors, precision electronics assembly, or any situation where electrostatic discharge could damage sensitive components, you must use ESD FR4 to ensure product reliability and operational safety.
