ESD FR4 Sheet: Features, Specifications, Machining, and Industrial Applications

With the rapid growth of the electronics manufacturing, semiconductor, electric vehicle (EV), 5G communications, and industrial automation industries, electronic components have become increasingly integrated and sensitive to electrostatic discharge (ESD). Even a small electrostatic discharge can damage integrated circuits, cause circuit failures, or reduce product reliability. As a result, selecting engineering insulation materials with stable ESD protection has become an essential part of modern electronics manufacturing.

ESD FR4 Sheet (Anti-Static Epoxy Fiberglass Sheet) combines excellent anti-static performance, mechanical strength, electrical insulation, and machining capability, making it one of the most widely used engineering materials in PCB manufacturing, SMT assembly, semiconductor equipment, and industrial automation.

What is ESD FR4 Sheet?

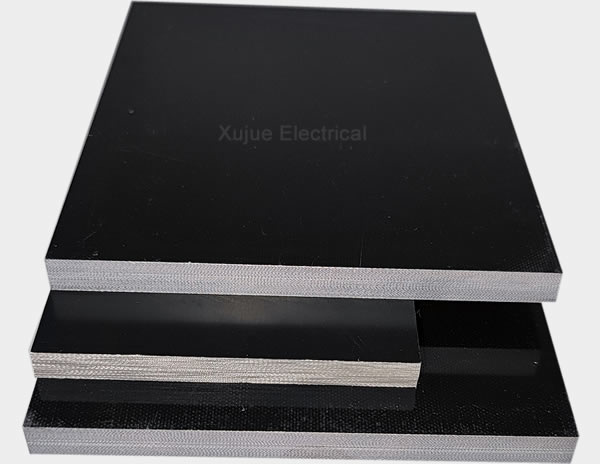

ESD FR4 Sheet, also known as Anti-Static FR4 Sheet or Anti-Static Epoxy Fiberglass Laminate, is manufactured by applying a conductive coating, static dissipative layer, or conductive fillers to a standard FR4 epoxy fiberglass laminate. While retaining the excellent mechanical strength, thermal resistance, and electrical insulation properties of conventional FR4, ESD FR4 provides controlled static dissipation, effectively preventing the accumulation of static electricity and reducing the risk of electrostatic discharge (ESD) damage to sensitive electronic components.

Compared with standard FR4 sheets, the greatest advantage of ESD FR4 is its stable surface resistivity, which remains consistent even under varying humidity and temperature conditions. This makes it ideal for applications requiring reliable long-term ESD protection.

Key Features of ESD FR4 Sheet

ESD FR4 Sheet combines outstanding anti-static performance with superior electrical insulation, making it a high-performance engineering laminate. Its surface resistivity is typically maintained within 10⁶–10⁹ Ω (Static Dissipative) or 10⁹–10¹² Ω (Anti-Static), allowing static charges to dissipate safely while preventing sudden electrostatic discharge that could damage sensitive electronic devices.

In addition to its excellent ESD protection, ESD FR4 offers high mechanical strength and dimensional stability. It can withstand various machining processes such as drilling, CNC milling, routing, engraving, and cutting while maintaining precise dimensions and excellent structural integrity. The material also features outstanding dielectric properties, low water absorption, excellent resistance to chemicals, oils, and acids, and complies with the UL94 V-0 flame-retardant standard. Standard grades are suitable for continuous operation at temperatures up to 130°C, while high-Tg grades can perform reliably in environments exceeding 150°C.

Available Specifications

To meet the requirements of different industrial applications, ESD FR4 Sheets are available in a wide range of sizes, thicknesses, and colors.

Common sheet dimensions include 1020 × 1220 mm, 1020 × 2040 mm, and 1220 × 2440 mm, with custom sizes available upon request. Standard thicknesses range from 0.2 mm to 50 mm, accommodating everything from thin insulation panels to heavy-duty structural components.

Color options typically include Black, Green, Blue, and Gray, with black being the most widely used due to its excellent appearance, contamination resistance, and stable anti-static performance.

CNC Machining Capabilities

One of the major advantages of ESD FR4 Sheet is its outstanding machinability. It is well suited for high-precision CNC machining, including milling, drilling, turning, routing, engraving, laser cutting, waterjet cutting, and slot machining. Manufacturers can produce highly accurate custom components based on customer drawings in STEP, DWG, DXF, IGES, or PDF formats.

Typical machined products include anti-static insulating washers, precision spacers, PCB test fixtures, SMT carriers, automation equipment components, guide rails, positioning plates, support panels, thermal insulation plates, robotic grippers, and various custom-shaped insulation parts. Thanks to its excellent dimensional stability and machining precision, ESD FR4 is widely used in industries that require tight tolerances and consistent product quality.

Industrial Applications

PCB Manufacturing

In PCB production, ESD FR4 Sheet is commonly used to manufacture drilling backup boards, PCB testing fixtures, positioning plates, SMT carriers, and PCB handling trays. Its stable static dissipative properties help protect printed circuit boards from electrostatic damage, improving production efficiency and product yield.

SMT Electronics Assembly

During SMT assembly, sensitive electronic components are highly vulnerable to electrostatic discharge. ESD FR4 is widely used for reflow soldering fixtures, wave soldering pallets, anti-static trays, and automated assembly tooling, significantly reducing ESD-related failures while improving manufacturing reliability.

Semiconductor Industry

Semiconductor devices such as ICs, chips, and wafers require strict electrostatic protection. ESD FR4 is commonly machined into wafer handling fixtures, IC testing jigs, chip positioning plates, and insulating components for semiconductor manufacturing equipment, ensuring reliable ESD control in cleanroom environments.

Industrial Automation

In automated manufacturing systems, ESD FR4 is used to produce positioning plates, guide rails, machine supports, anti-static fixtures, robotic end-effectors, and other structural components. It combines excellent mechanical performance with reliable electrostatic protection, making it ideal for precision automation equipment.

Electric Vehicles and Lithium Battery Manufacturing

As the EV and lithium battery industries continue to expand, ESD FR4 has become increasingly important in battery pack assembly fixtures, battery cell testing equipment, automated production lines, and insulating structural components. It helps improve manufacturing safety, product consistency, and production efficiency.

Medical Electronics and Precision Instruments

Medical devices and precision electronic equipment require reliable insulation and electrostatic control. ESD FR4 is widely used in diagnostic equipment, laboratory instruments, optical systems, communication devices, and other high-precision applications, ensuring stable long-term performance.

Why Choose ESD FR4 Sheet?

Compared with standard FR4 laminates, ESD FR4 Sheet offers the perfect combination of excellent electrical insulation, high mechanical strength, outstanding machinability, and stable electrostatic dissipation. It effectively protects sensitive electronic components from ESD damage, improves product reliability, and increases manufacturing yield. Its excellent dimensional stability, high-temperature resistance, chemical resistance, and precision machining capability make it the preferred material for PCB manufacturing, semiconductor equipment, SMT assembly, industrial automation, electric vehicles, and medical electronics.

As a professional ESD FR4 Sheet manufacturer and supplier, we provide a complete range of anti-static epoxy fiberglass laminates in various sizes and thicknesses, along with precision CNC machining services. From standard sheets to complex custom-machined components, we deliver one-stop insulation solutions tailored to your drawings and application requirements, helping customers improve product quality, minimize electrostatic risks, and meet the demanding standards of modern industrial manufacturing.
