FR-4, G10, and G11 epoxy sheets are indispensable high-performance insulating and structural materials in the CNC machining industry. They are composite materials made of epoxy resin combined with fiberglass cloth under high temperature and pressure, widely used in CNC milling, drilling, turning, and engraving.

1. Comparison of Core Material Properties

Before CNC machining, it is crucial to select the correct material grade based on the operating conditions:
Material Grade Key Feature Core Advantage

2. Primary Application Fields in CNC Machining

 Electronics & Semiconductor Testing (Mainly FR-4 / G10)
Test Fixtures and Jigs: Used to manufacture PCB test racks, ICT test fixtures, and needle bed base plates.
Semiconductor Wafer Processing: CNC machined into wear-resistant, chemical-resistant trays, separators, and insulating liners.
Electrical Power & Heavy Electrical Equipment (Mainly G11)
Transformer and Motor Components: Machined into slot wedges, spacers, insulating terminal boards, and phase-to-phase insulation pieces.
High-Voltage Switchgears: CNC milled into barrier plates, arc chute components, and insulating pull rods to withstand high-voltage arcing.
New Energy Vehicles (EVs) & Energy Storage Batteries (Both FR-4 / G11)
Battery Pack Insulation: Flame-retardant FR-4 is heavily CNC cut into module separators, end plates, and base insulation pads for lithium battery packs.
Busbar Insulating Supports: Used to protect high-voltage conductive busbars and prevent short circuits.
Aerospace & Defense (Mainly G10 / G11)
Cryogenic & High-Vacuum Structural Components: G10 does not become brittle at extremely low temperatures, making it ideal for insulation supports in cryogenic equipment and space instruments.
Radar Radomes and Enclosures: Machined into complex structural shells by leveraging its excellent wave-transparent properties.

3. CNC Machining Challenges and Countermeasures

Because epoxy sheets contain large amounts of highly abrasive fiberglass, they present specific challenges during CNC machining:
Extreme Tool Wear: Fiberglass has a strong abrasive effect on cutting tools.
Countermeasure: Never use standard High-Speed Steel (HSS) tools. Solid carbide tools (tungsten steel) must be used. For mass production, PCD (Polycrystalline Diamond) tools are highly recommended.
Delamination, Burrs, and Chipping: The laminated structure makes edges prone to peeling during machining.
Countermeasure: Use left-hand helix routers (down-cut bits) or diamond-cut routers (corn cob cutters) to apply downward pressure on the material, preventing surface fibers from tearing.

4. CNC machining service consultation

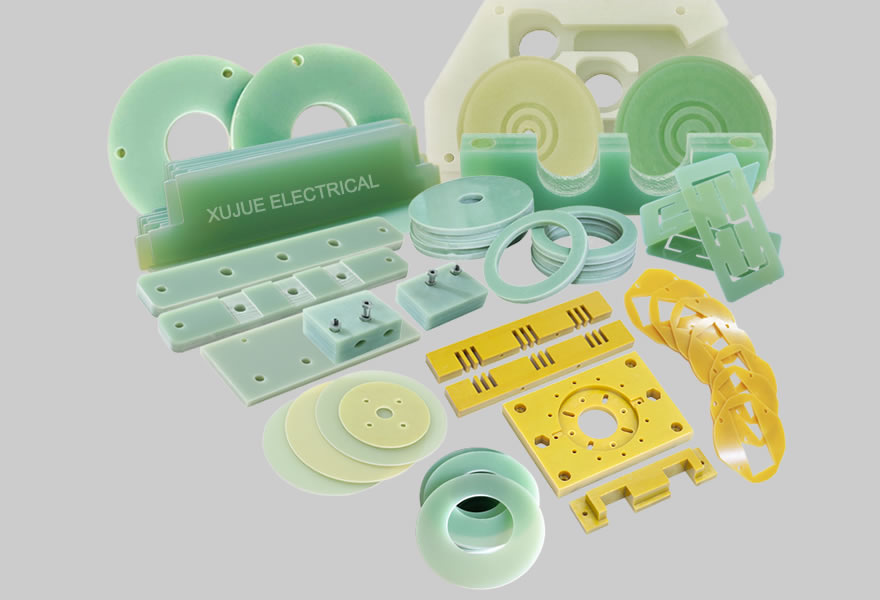

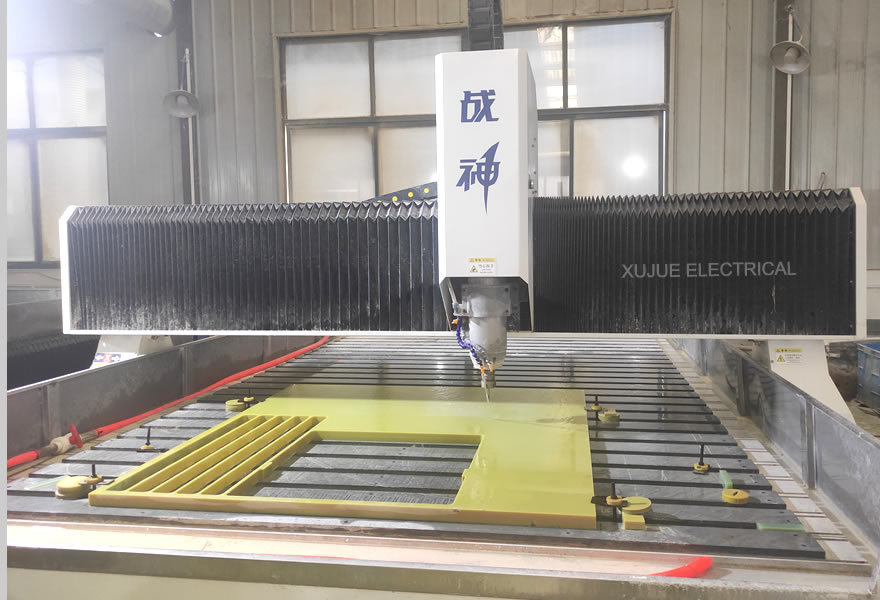

Xujue Electrical provides professional CNC machining services for electrical insulation materials, including transformer insulation spacers and blocks, motor insulation components, switchgear insulation parts, and various custom-machined insulation components.

If you require electrical insulation material machining services, Xujue Electrical can manufacture high-precision insulation components according to your drawings and tolerance requirements, ensuring reliable quality and dimensional accuracy for your specific applications.
