NMN Flexible Insulation Material for Motor Winding

Introduction to NMN Flexible Insulation Material NMN flexible insulation material is a widely used electrical insula...

Introduction to NMN Flexible Insulation Material

NMN flexible insulation material is a widely used electrical insulation solution for motor winding applications. It is a three-layer composite laminate consisting of Nomex paper / Polyester film / Nomex paper, combining excellent electrical insulation, mechanical strength, and thermal stability.
Due to its balanced performance and cost-effectiveness, NMN insulation material is extensively applied in low-voltage and medium-voltage motors, transformers, generators, and other electrical equipment requiring reliable winding insulation.

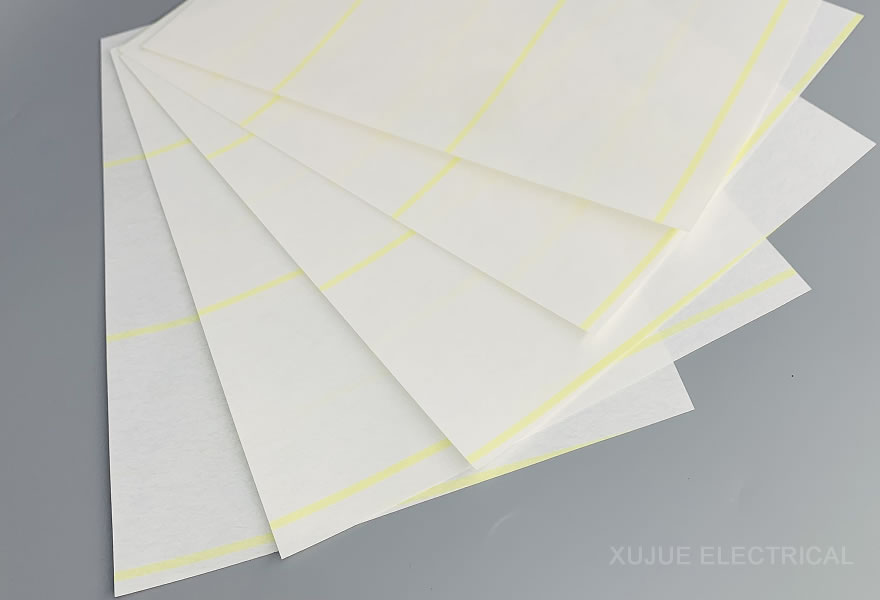

NMN insulation material

Structure and Composition of NMN Insulation

NMN insulation material is engineered with a sandwich structure:
Outer layers: Nomex® aramid paper
Core layer: PET (polyester) film
This composite structure allows NMN to offer both high dielectric strength and flexibility, making it ideal for complex motor winding processes.

Key Properties of NMN Flexible Insulation Material

Excellent Electrical Insulation Performance

NMN provides high dielectric strength and stable insulation resistance, effectively preventing short circuits between motor windings.
Thermal Class F (155°C)
NMN insulation material is classified as Class F, suitable for motors operating under elevated temperatures for long periods.
Good Mechanical Strength and Flexibility
The polyester core ensures flexibility, while the Nomex layers enhance tensile strength and tear resistance, allowing easy insertion during winding.
Chemical and Moisture Resistance
NMN shows good resistance to oils, solvents, and moisture, improving motor reliability in harsh industrial environments.

NMN Insulation Applications in Motor Winding

NMN flexible insulation material is commonly used for:

Slot insulation in electric motors
Phase insulation and interlayer insulation
End-winding insulation
Small and medium-sized industrial motors
Pumps, compressors, and HVAC motors
Its flexibility allows it to fit tightly into narrow motor slots, improving insulation safety and assembly efficiency.

NMN vs. Other Motor Insulation Materials

NMN offers a strong balance between performance, flexibility, and cost, making it a preferred choice for standard motor winding insulation.

Available Specifications

NMN insulation material is available in:
Thickness range: 0.15 mm – 0.50 mm
Forms: rolls, sheets, slit tapes
Custom cutting and die-cut parts upon request
Customized sizes help reduce waste and improve production efficiency for motor manufacturers.

Why Choose NMN Insulation for Motor Winding?

Stable electrical performance
Proven reliability in motor applications
Easy processing and installation
Competitive cost compared to high-temperature materials
Suitable for mass production motors

Conclusion

NMN flexible insulation material is a reliable and cost-effective solution for motor winding insulation. With its excellent electrical, thermal, and mechanical properties, NMN helps improve motor performance, safety, and service life.

If you are looking for a professional NMN insulation material manufacturer or supplier, customized thickness and precision cutting services are available to meet your motor design requirements.

Contact us to get technical data sheets, samples, and competitive pricing.
