Electrical polyester shrink tape

Product Introduction

polyester shrink tape is made of special polyester fiber heat-shrinkable tape impregnated with H-grade adhesive after heat treatment. Heat resistance grade F grade. It has obvious thermal shrinkage when heated and cured, and is especially suitable for wrapping coils to make the coils flat, fastened and strong in integrity.

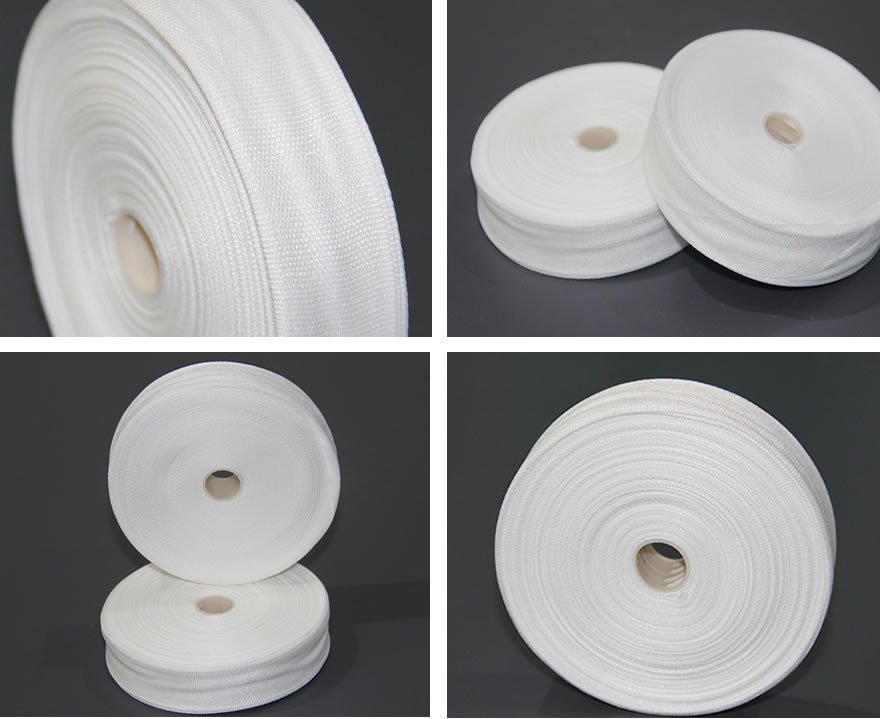

Shrink tape

shrink tape Application

It is widely used for coil binding of motors and electrical appliances.

Electrical Polyester Shrink Tape Characteristic:

1. This product is woven by modified polyester fiber.

2. The heat resistance is F Class (155 ° C).

3. When the temperature reaches 150 degrees for 10 minutes, the shrinkage rate reaches 30%.

4. The product is beneficial to the fastening and integrity of the ligating part, and the tensile strength is high, and the workpiece processed by the shrinkage belt can save the amount of the immersion paint and the appearance is standardized.

5. It is suitable for the binding and fastening of wire and other parts of motors, transformers, reactors and other products

Electrician Polyester Shrink Tape Parameter:

ndicator name		Unit	Index value
Nominal thickness		mm	0.23	0.26(oblique)	0.29
Width deviation		mm	±1
Shrinkage		%	≥30
Tensile Strength		N/10mm	≥200
Broken	Single	mm	≥200(no)
	Double root		≥30(no)
Side		–	Unaffected loose edges, tight edges, thick edges, thick edges
Inclusion		–	None
Stains		–	No rust, the sum of oil length and width ≤14mm
Broken head		–	Allow each disc to have two segments, each segment not less than 3m in length
Hole		–	There should be no warp, latitude, or more than 3 holes
Storage period		Month	The date from the factory is 12 months, and the product is tested according to the product standard for more than 12 months.

Electrician Polyester Shrink Tape Packing:

Polyester Fiber Shrink Tape,usually we will be packed by three-layer, the first layer is a plastic film, the second layer is a carton plus a packing tape, and the third layer is wrapped with a plastic film. This will prevent the goods from getting wet and rubbed during transportation and ensure that the product arrives at your destination in good condition.

Electrician Polyester Shrink Tape FAQ:

1.Q: Are you trading company or manufacturer ?

A: We are a manufacturer, We have more than 61 years experience in producing insulation materials.

2.Q: Where is your factory located? How can I visit there?

A: Our factory is located in Xuchang,Henan provience.

3.Q: Which certification do you have?

A: The plant has passed the certificate of ISO 9001 quality system certification;

The insulation system has been approved by UL;

The products have passed ROHS test.

4.Q: Can I get samples for free?

A: Of course, we can sent you for free, customers just need to pay a litter shipping change.

5.Q: How long is the delivery time?

A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
