Electrical Laminated Wood

Electrical Laminated Wood

Transformer Wood

2,000mm x 1,000 mm
2,000 x 2,000 mm
2,500mm x 1,250 mm
3,000mm x 1,500 mm
4,000mm x 2,000 mm


Electrical Laminated Wood standard sizes

Transformer Wood

2,000 x 1,000 mm
2,000 x 2,000 mm
2,500 x 1,250 mm
3,000 x 1,500 mm
4,000 x 2,000 mm

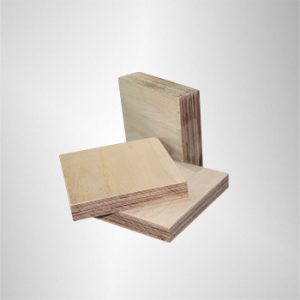

Transformer Wood: Laminated Densified Wood Sheet
Transformer wood is a laminated densified wood according to IEC 61061 and LYT1278-2011. It consists of Russia imported birch and silver birch wood, which are joined together with thermosetting synthetic resins under pressure and heat.

Electrical Laminated Wood Parameter

Testing Report from CEMT, CHINA in 2016

Name Electrical Laminated Densified Wood Testing Series No 2016-3-047
Grade C4B Testing Agent CEMT, CHINA
Code Testing Item Uni Capacity CEMT Testing Result Testing Method
1 Vertical Bending Strength A Mpa ≥80 96.6 GB/T 20634.3-2008
B ≥80 96
2 Vertical Bending Modulus A Gpa ≥9 10.8
B ≥9 9.64
3 Compressibility (below 20MPa) C % ≤2.5 2.37
Crev ≥70 77.4
4 Shear Strength Mpa ≥9 14.9
5 Vertical Electrical Strength (90°C±2°C), #20 Transformer Oil. KV/mm ≥12 15.3
6 Parallel break through voltage  (90°C±2°C), #20 Transformer Oil. Kv ≥50 107
7 Pollution to liquid electrolyte ≤0.1 2.4×10-4
8 Moisture Content % ≤6 5.9
9 Shrinkage Ratio after dry A % ≤0.3 0.1
C % ≤0.3 0.16
T % ≤3 2.8
10 Oiling obsorbility % ≥5 13.2
11 Surging strength A Kj/㎡ ≥15 25.5
B ≥15 24.5

Electrical Laminated Wood Features
• good electrical insulation
• very good oil absorption
• low specific weight
• withstands high mechanical loading
• low- and high-temperature resistance
• resistance to abrasion and wear
Laminated Densified Wood Sheet: Semi-finished products
In our semi-finished products range, we produce in particular laminated Transformer wood sheets in various qualities and dimensions.

Other sizes are available upon request. For each size, a minimum order of 1,000 kg per delivery is required.
Strengths and Tolerances
Our Laminated Transformer Wood sheets in special and custom sizes are delivered with a tolerance conforming to the DIN 40603 standard or with a very precise strength tolerance after surface finishing.
Laminated Transformer Wood – Finished/Machined Parts
The production of CNC machined components from laminated transformer wood sheets as per drawings from customers is our specialty. We utilize versatile modern CNC milling machines, special laces and automatic machines.
International Standard Packaging for Sea Transportation
70MM height non fumigation pallet for the easier of fork. Surface of products are well protected from moisture by 2 layers of clean wrap. The pack was fully covered by 2mm thick wood board to prevent damage.
